Phase Angle
Voltmeter
Model 2500
 Simultaneous
Data Display
Isolated inputs
0.03º Phase Accuracy
On board reference generator
80 dB harmonic rejection
Wide frequency response
IEEE-488, RS232, Printer Port |
 |
|
Description
The Model 2500 PAV makes any other Phase Angle Voltmeter obsolete.
With advanced DSP technology and Fast Fourier Transform algorithms this Phase Angle
Voltmeter provides a new level of performance and versatility. In addition, the Model 2500
Phase Angle Voltmeter is considerably less expensive than any other traditional PAVs
currently on the market.
Specifically targeted at the Synchro/Resolver and LVDT/RVDT marketplace this Phase
Angle Voltmeter makes measurements of Phase Angle, In-Phase, Quadrature, Fundamental and
Total a breeze. All parameters are displayed simultaneously on a bright multifunction
display. The readout can even be zoomed to enlarge any selected measurement.
Isolated inputs allow null, ratio and gain measurements of key parameters and a
reference offset facilitates bridging measurements. A sensitive null meter is included for
precise nulling. An on-board reference generator (with optional amplifier) eliminates the
need for an external reference; although the unit can be used with an external generator
if so desired.
But the Model 2500 Phase Angle Voltmeter goes further. It can also measure
complex impedance, power and harmonics, plot gain and phase over a selected frequency
range, display input waveforms and show magnitudes of individual frequencies present in
the input signal.
Typical Displays

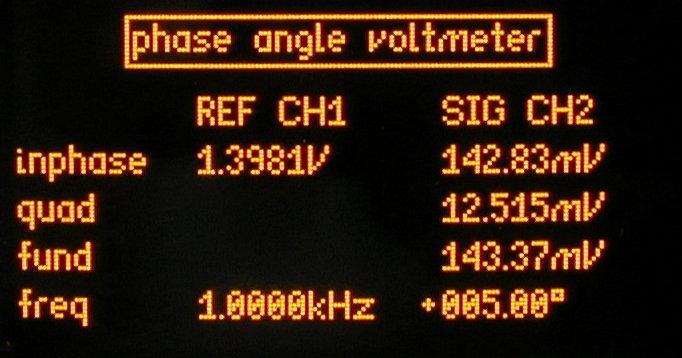

Multifunction Display
|

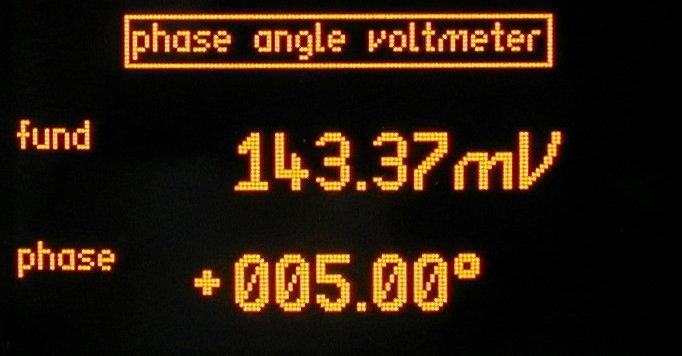

Fundamental and Phase
|

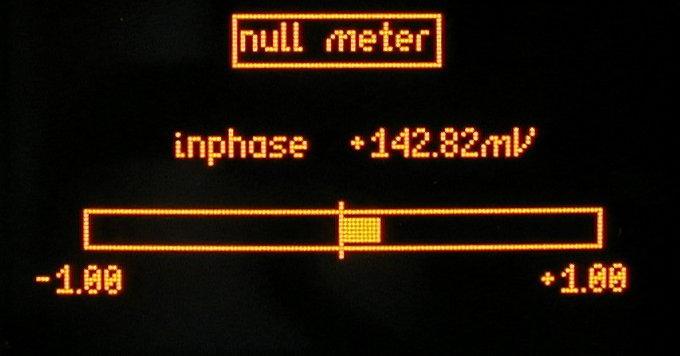

Null Meter Display |
Specifications
Primary Measurements
Phase Angle Voltmeter
| Channels / display |
2 isolated / 5 digits resolution (0.01º Phase Angle) |
| Measurement |
Rms, Fundamental, Inphase, Quadrature, Frequency and Phase plus Null Meter |
| Voltage Input Ranges |
500V 300V, 100V, 30V, 1 0V, 3V, 1V, 300mV, 100mV, 30mV,10 mV or
Autoranging |
| Phase Input Ranges |
0.00º - 360º or ±180º |
| Frequency Range |
Dc to 2MHz |
| Common Mode Rejection Ratio (CMRR) |
5Hz to 999.99Hz : 126dB
1kHz to 5kHz: 110dB
5kHz to 32 kHz: 100dB
32kHz to 64kHz: 91dB |
| Harmonic Rejection |
80dB (even and odd) |
| Max input |
±500V peak
500V peak from earth |
| Input impedance |
1 M // 30pF (excluding. Leads) |
| Coupling |
Ac or ac+dc |
| Time constant |
0.2s, 1.5s or 12s |
Fundamental Accuracy (Signal and Reference)
| Frequency |
Voltage Rdg + Rng |
Phase |
Gain Ratio |
| 10mHz to 2kHz |
± 0.05% ± 0.05% |
±0.03º |
±0.02dB |
| 2kHz to 5kHz |
± 0.05% ± 0.10% |
±0.04º |
±0.03dB |
| 5kHz to 20kHz |
± 0.10% ± 0.15% |
±0.05º |
±0.04dB |
| 20kHz to 32kHz |
± 0.10% ± 0.30% |
±0.15º |
±0.06dB |
| 32kHz to 54kHz |
± 0.10% ± 0.80% |
±0.25º |
±0.08dB |
| 54kHz to 100kHz |
± 0.10% ± 1.20% |
±0.50º |
±0.12dB |
Add 0.050mV to the uncertainty for rms voltages on
the 10mV range.
Signal generator (internal)
| Waveforms |
sine, triangle, square, sawtooth, dc |
| Frequency |
10mHz to 2.4MHz (sine); 10mHz to 1MHz (other) |
| Accuracy |
Frequency ±0.05%; Amplitude ±5% + 5mVrms (to 100kHz) |
| Output impedance |
50W |
| Output voltage |
10mV to 10V peak |
| Offset |
0V to 10V |
Secondary Measurements
Gain Phase Analyzer
R-L-C Meter
Transformer Analyzer
General
| Display |
160 x 80 dot graphic electroluminescent |
| Display Refresh Rate |
25Hz (all readings simultaneously) |
| Digital Interface |
IEEE-488.2, RS232, Printer Port |
| Size |
Approximately 17.3"(43.9cm) x 3.5"(8.89cm) x 9.7"(24.6cm)
(whd) |
| Temperature range |
Operating: 0° to 40°C
Within specification: 23° ±5°C after 30 minute warm-up |
| Weight |
Approximately 11pounds |
| Power supply |
115 V rms ±10%, 60Hz, 30VA max. |
| Warranty |
1 year |
Ordering information
| Model 2500 |
Includes input probes, BNC output cable, RS232 cable;
power cord, manual, Certificate of Calibration |
| Option 01 |
LCR / Wound Component Test Head Includes Kelvin clips |
|
|
|
