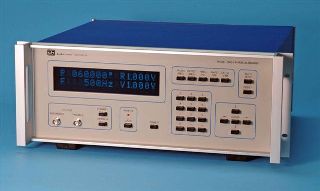

Phase Standard - Model
5500-2
 SIMPLE TO USE |
NIST TRACEABLE |
EASY TO CALIBRATE |
1 m° Phase Resolution
5m° Phase Accuracy
1 Hz to 200 kHz
50mv to 120V rms Outputs
Amplitude Accuracy Typically
0.3% to 100kHz
Output Current >15mA
Phase Accuracy Maintained for
1000:1 Amplitude Ratios
-80dB Typical Distortion |
 |
USER FRIENDLY
Only single keystrokes on clearly labeled keys are required to enter all of the parameters
into the Model 5500-2 Phase Standard. A large bright display shows Phase, Frequency and
both output Amplitudes at all times.
EXTREMELY VERSATILE
The combination of excellent phase accuracy, excellent amplitude accuracy and low
distortion from each channel make the Model 5500-2 Phase Standard ideal for calibrating
Phase Meters, Vector Voltmeters, Broadband Wattmeters and Power Analyzers, Resolvers and
other Phase Sensitive Instruments.
CONTINUOUS PHASE CALIBRATION
The Model 5500-2 Phase Standard contains an Autozero function which measures the output
phase at ±90° and makes an internal correction to remove
any phase errors between the two output channels. The Autozero operation, which takes less
than 0.25 sec., is activated automatically each time an amplitude or frequency is changed.
It may also be activated manually.
DIGITAL PRECISION
Both output sinewaves are generated digitally with the result that the basic parameters of
Phase and Frequency require no adjustments to maintain their superior accuracy. Only the
output amplitudes are adjustable.
LOAD IMMUNITY
The extremely low output impedance of the Model 5500-2 Phase Standard coupled with its
ability to Autozero with an external load in place, makes the phase accuracy of the
instrument completely insensitive to loading.
EXTENSIVE SELF TEST
The Model 5500-2 Phase Standard has an internal SELF TEST capability which checks the
output frequency for all frequency ranges, checks all of the digital sine wave generation
circuitry, checks the output levels of all amplitude ranges for both channels and checks
the Autozero function. If an error is found it is reported in a fashion that leads to
quick repair and restoration of the instrument to service.
EASY TO CALIBRATE
The complete set of specifications of the Model 5500-2 Phase Standard may be checked with
an accurate ac/dc (true rms) Multimeter, an accurate Frequency counter, a good Distortion
Analyzer and the Clarke-Hess Model 5002 Phase Verification Bridge Set. This completely
passive bridge set may be sent either to Clarke-Hess or directly to NIST for annual
recertification.
AUTOMATED ADJUSTMENTS
Many of the adjustments for the internal potentiometers in the Model 5500-2 Phase Standard
are included in an internal calibration routine. If adjustment is required during annual
recertification, the operator just turns the "pot" until a value indicated on
the display is obtained. The ability to operate the instrument over the IEEE-488 interface
makes other adjustments equally straight forward.
PHASE ANGLE
| Range: |
0.000° to ±999.999° |
| Resolution: |
0.001° from 1Hz to 200kHz |
| Accuracy: |
The following phase accuracy is specified after the Standard has been
AUTOZEROed with the device under test in place. The accuracy is independent of the ratios
of the amplitudes. |
|
Amplitude |
Frequency Range |
1Hz-1kHz |
1kHz-6.25kHz |
6.25kHz-50kHz |
50kHz-200kHz |
5V, equal |
±5m ° |
±5m ° |
±10m ° |
±40m ° |
50mV-100V |
±5m ° |
±10m ° |
±15m ° |
±40m ° |
100V-120V |
±10m ° |
±20m ° |
±30m ° |
±80m ° |
| Stability: |
5m° for 20 minutes after 2 AUTOZERO's
separated by 30 sec. |
OUTPUT FREQUENCY
| Range: |
1Hz to 200kHz |
| Resolution: |
1Hz from 1Hz to 6250Hz |
|
10Hz from 6250Hz to 50kHz |
|
20Hz from 50kHz to 200kHz |
| Accuracy: |
Better than ±100 parts per million. |
| Stability: |
10 ppm for 24 hours. |
| Output: |
Rear Panel, TTL compatible output. |
OUTPUT AMPLITUDE
| Range: |
50mV rms to 120V rms |
| Resolution: |
1mV from 50mV to 0.5V |
|
2mV from 0.5V to 8V |
|
33.33mV from 8V to 100V |
|
100mV from 100V to 120V |
| Accuracy: |
±0.5% ±5mV from 1Hz to 50kHz |
|
±1% ±25mV from 50kHz to 100kHz |
|
±5% ±50mV from 100kHz to 200kHz |
| Stability: |
0.05% for 1 hour. |
OUTPUT CURRENT CAPABILITY
| |
15mA minimum |
TOTAL HARMONIC DISTORTION
| |
Less than 0.02% (-74dB) from 1Hz to 1000Hz |
| |
Less than 0.05% (-66dB) from 1000Hz to 20kHz |
| |
Less than 0.13% (-58dB) from 20kHz to 50kHz |
| |
Less than 0.30% (-50dB) from 50kHz to 100kHz |
|
Less than 0.50% (-46dB) from 100kHz to 200kHz |
| NOISE |
Less than 0.05mV from dc to
200kHz |
OUTPUT DC OFFSET
| |
Less than 0.5% of the ac Output |
OUTPUT IMPEDANCE
| |
Less than 0.5 W |
MAXIMUM EXTERNAL LOAD CAPACITANCE
| |
Less than 3000pF |
IEEE-488 1978 SUBSETS
| |
SH1,AH1,T6,L4,SR1,RL1,PP0,DC1,DT0 |
WARM-UP TIME
| |
Less than 10 minutes for all Specifications |
TEMPERATURE RANGE
| |
Operating: 25°C ±15°C |
| |
Storage: -40°C to 75°C |
RELATIVE HUMIDITY
| |
Less than 95% between 10°C and 30°C |
| |
Less than 75% between 30°C and 40°C |
LINE VOLTAGE, FREQUENCY AND POWER CONSUMPTION
| |
100V ±10%, 120V ±10%, 220V ±10%, 240v ±10%. 50Hz or 60 Hz. 1 MDL Fuse for 120 V operation. Power
Consumption less than 75W (60Hz-120V). |
| |
|
| PHYSICAL |
Rack or bench mount |
|
Weight: 12.7 kilograms (28 pounds) |
|
Size: 48.3 x 17.8 x 38.1
cm (19" x 7" x 15") |
|
