Phasemeter - Model 6000

EASY TO CALIBRATE

EASY TO USE

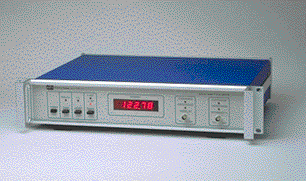

Model 6000 PhasemeterWaveshape Independent
10mV to 350V Input Voltages
10,000:1 Input Ratios
Completely Autoranging
10m° Resolution
20m° Typical Accuracy
5 Hz to 500 kHz
Analog Output
Low Drift with Time and
      Temperature

USER FRIENDLY
The Model 6000 Phasmeter automatically selects the proper range for both amplitude and phase and is waveshape independent. The user only needs to connect the two input cables to the Phase meter to obtain a phase reading. Overrange and Underrange LED's indicate whether either of the two input signals is too large or too small. An OFFSET toggle on the front panel allows the user to make differential phase measurements without the need of subtracting large numbers. No front panel screwdriver adjustments for any function of the phasemeter are required.

IEEE-488 INTERFACE STANDARD
The Model 6000 Phasemeter has an optically isolated IEEE-488 1978 interface as a standard feature. Via the Bus interface the user can read the display, toggle the phase range, and check for input signal overrange or underrange, front panel selected offset and phase range. The optical isolation prevents ground loops (and the resulting phase errors) between the input signals and the digital bus controller circuits.

TWO PHASE RANGES - EXCELLENT TRACKING
The Model 6000 Phasemeter has two phase ranges: The 0° to 360° range and the ±180°  range. Range switching occurs either automatically when the display indication approaches within 10° of the range limit or manually when the front panel RANGE toggle switch is pressed. In the regions where the ranges overlap, differences of less than ±10m° result when switching occurs.

NOISE IMMUNITY
Unique circuitry, including filter banks which switch in automatically as the input frequency is decreased and unipolar hysteresis around the comparators, enables the Model 6000 Phasemeter to operate to low frequencies with input signals which have been corrupted by noise or other disturbances without erratic operation. Keyboard control allows removal of the filters for optimum square wave measurements. Display indicates whether filters are "in" or "out" of the circuit.

WIDE FREQUENCY RANGE
The Model 6000 Phasemeter operates with input frequencies between 5Hz and 500kHz. For frequencies between 10Hz and 50kHz typical accuracies are ±20m° regardless of amplitude ratios which may exceed 10000:1.

WAVESHAPE INDEPENDENT
The high accuracy of the Model 6000 Phasemeter is maintained not only for sinewaves but also for square waves and triangular waves. Unique internal circuitry produces waveform independent phase readings; hence, the user does not have to activate any front panel waveform selection switches. Two different waveforms of the same frequency may be applied to the Phasemeter simultaneously.

AUTOMATED CALIBRATION
The inclusion of the IEEE Bus allows both the USE and the CALIBRATION checking of the Model 6000 to be easily automated.

HIGH ACCURACY/LOW DRIFT
Typical accuracy of ±20m° and low drift are obtained by complete circuit integration under microprocessor control. Potential drifts due to voltage variations are eliminated by differential dual slope analog to digital converters. Effects of analog offsets are eliminated with the use of dual comparators in each channel.

HIGH INPUT RATIOS
Accuracies of ±50m° (typically ±20m°) are maintained not only with equal amplitude signals in both channels but also with amplitude ratios in excess of 1000:1 (60db) between the signals.

ROBUST INPUT PROTECTION|
Unique input protection circuitry allows for the sudden application of high input voltages without fear of damage to the Model 6000 Phasemeter. There is no need to slowly increase the levels of input voltages.

FLOATING INPUTS
Neither input of the Model 6000 Phasemeter is connected to chassis ground; hence measurements may be made on networks with "earth ground" connections without creating ground loops with their resultant phase errors.

FAST SETTLING TIME
The Model 6000 Phasemeter settles to within its specified accuracy typically within 5 seconds following an abrupt change in input conditions.

EVEN HARMONIC REDUCTION
The Model 6000 Phasemeter has been designed to reduce phase errors caused by the presence of even harmonic distortion present in one input channel and not the other. For example, a 1% second harmonic distortion component in one channel produces a phase error of less than 5m° which is less than the minimum phase resolution of the Phasemeter.

SPECIFICATIONS

PHASE
Ranges: Two Ranges 0° to 360° and -180° to 180°. Range switching is accomplished automatically when operation approaches within 10° of the range limits.

Resolution: 10m° (0.01°)

Repeatability: ±10m° or better

Accuracy: ±200m° from 5Hz to 10Hz
(Sine Waves) ±50m° from 10Hz to 50kHz
±[50 + 2(fkHz - 50)]m° from 50kHz to 100kHz
±[150 + 3.5(fkHz - 100)]m° from 100kHz to 500kHz

Accuracy: ±[50 + (fkHz)]m° (Equal Amplitudes)
(Square Waves) ±[50 + 4.4(fkHz)]m° (Unequal Amplitudes at Range Limits)

Offset: The OFFSET toggle subtracts the current phase reading from all subsequent phase readings.  The range about the Offset point is ±180° which is independent of phase autoranging.

INPUT CHARACTERISTICS-EITHER CHANNEL
Amplitude Range: 10mV RMS to 350V RMS in three ranges: 10mV to 500mV RMS, 500mV to 12.5V RMS and 12.5V to 350V RMS. Range switching is accomplished automatically when operation approaches within approximately 10% of the range limits.  (From 10mV to 20mV derate phase accuracy by a factor of 2.)

Input Impedance: 1MW in parallel with less than 50pF.  Front Panel BNC

Input Waveforms: Sine, Triangle, Trapezoidal or Square.  The Phasemeter provides a reading proportional to the average of the difference between the positive zero crossings and the difference between the negative zero crossings of the inputs. These zero crossings are determined after the waveforms are AC coupled.

Maximum dc Input: The dc component of either input waveform should be 200V or less.

Frequency Range: 5Hz to 500kHz

RESPONSE TIME
  Less than 6 seconds to specified accuracy

DISPLAY
0.5" High Efficiency LED Display for Phase.  Small High Efficiency LED Lamps to indicate Phase Range, REMOTE, Phase OFFSET ON, and OVERRANGE and UNDERRANGE for both input channels.

CONTROLS
Front Panel: Phase OFFSET key switch, LOCAL key switch and Phase RANGE toggle key switch
Rear Panel: Five position IEEE-488 Address switch

ANALOG OUTPUT
+1.80 to -3.60V DC with a sensitivity of -10mV/° and an accuracy of ±0.5% + phase accuracy.  250ohm output impedance. Rear Panel BNC

IEEE-488 SUBSETS
   SH1, AH1, T6, L4, SR1, RL1, PP0, DC1, DT0

WARM-UP TIME
  Less than 30 minutes for all specifications

TEMPERATURE RANGE
  Specified Accuracy: 23°C ±5°C
  Safe Operation: 0°C to 50°C

RELATIVE HUMIDITY
  Specified Accuracy: 20% to 75% RH
  Safe Operation: 5% to 90% RH

LINE VOLTAGE, FREQUENCY AND POWER CONSUMPTION
    100V ±10%, 120V ±10%, 220V ±10%, 240V ±10% (Rear Panel switch selectable), 50Hz - 60Hz
Power Consumption less than 20W
PHYSICAL
  Rack or bench mount.  Bail allows 10° upward tilt.
  Weight:   5.1kg (11 pounds)
  Size:        48.3cm x 8.9cm x 33.0cm (19" x 3.5" x 13")
